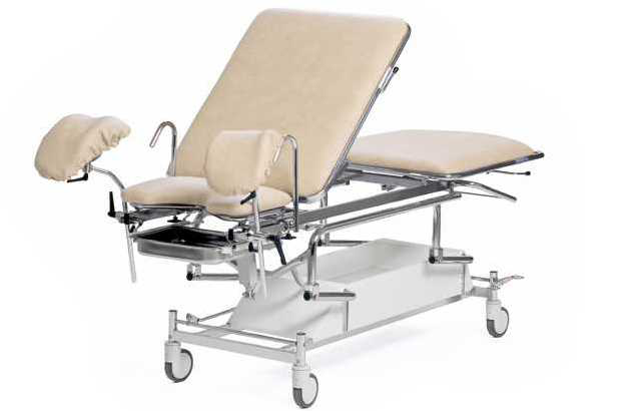

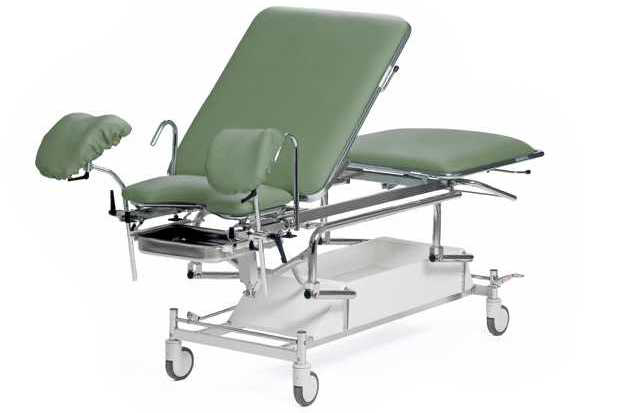

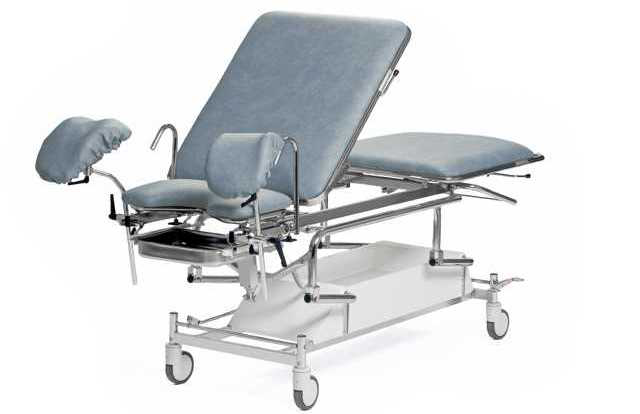

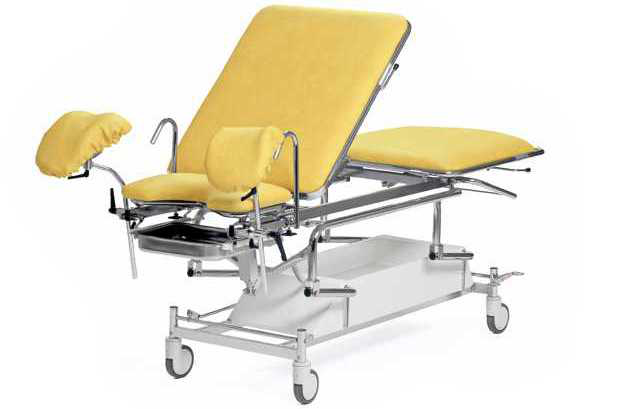

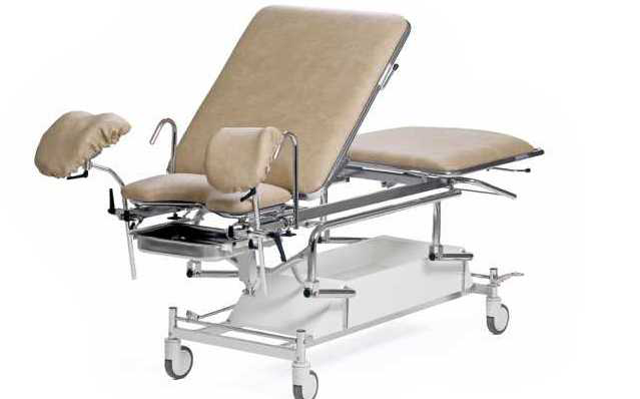

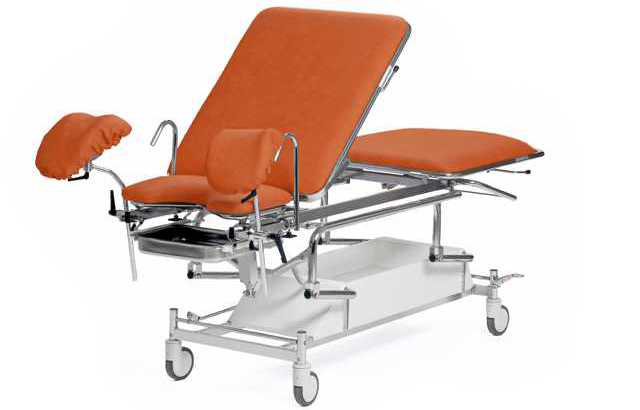

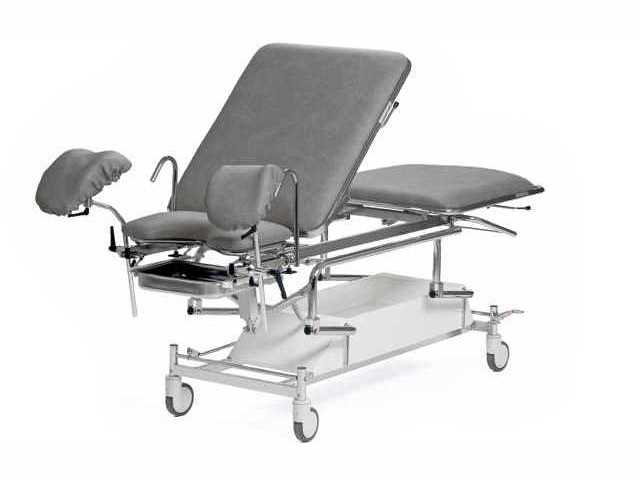

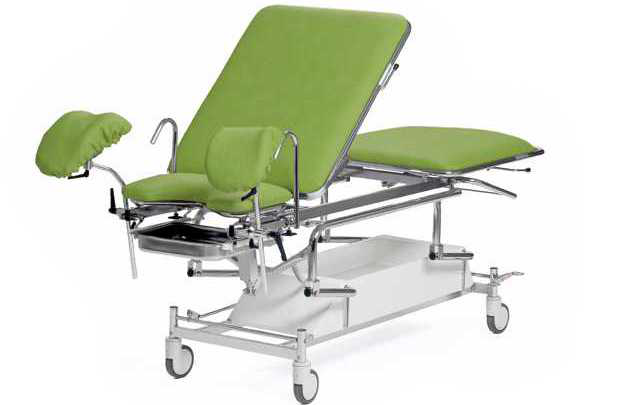

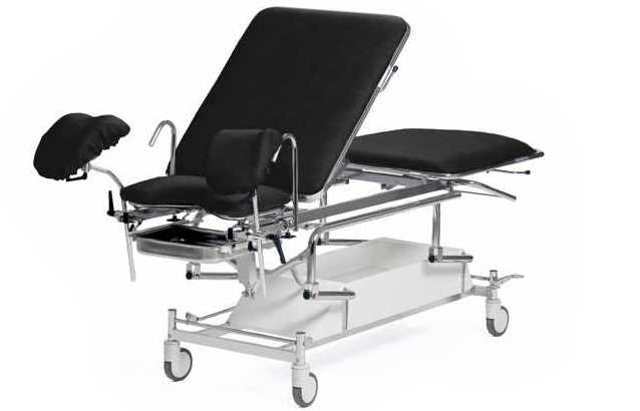

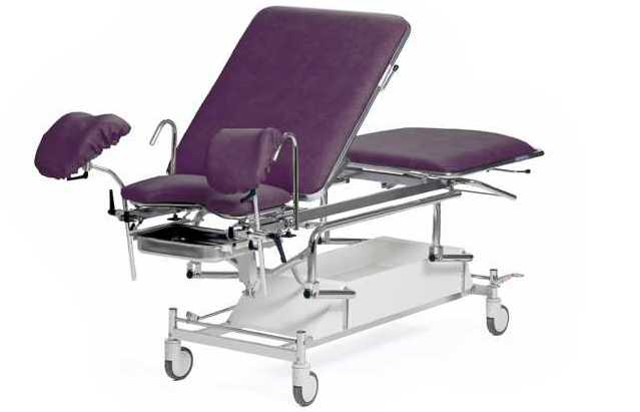

Combigyn electric
With standard leg holders in the same colour as the chair.The covers can be exchanged.
Item No: 015-2050
Including leg holders in the same color as the other pads.
CE certification
CE certified according to MDR.
How to adjust the Combigyn
The Combigyn always has a minimum of two motors, one adjusting height and one adjusting the seat section / Trendelenburg position. The two backrests are manually adjusted by gas spring as standard. The forward backrest is also available with electric adjustment.
Chassis
The all-welded chassis is available in chromium-plated or powder-coated steel. The design with its four lifting points makes the Combigyn very sturdy and stable.
Castors
The quality 125 mm castors is locked and released by pressing one pedal, so called central locking. Thereby the Combigyn is easy to move in the room for cleaning or even for transporting a patient urgently if needed.
Leg holders
The leg holders are fully adjustable in height, angle, around its axis and along the accessory rails. They are available in two different designs, model Standard with its removable pad in the same colour as the chair and model Integral in a black integral foam. Both the leg holders and the optional patient handles are easily and fully removable from the accessory rails, which is a great help when moving a patient onto the chair from a bed or a wheel chair.
Pads and colour
The pads are filled with a 4 cm foam plastic, covered in artificial leather available in many different colours to match the room decor. The pads are protected against bumps by a chromium-plated steel frame.
CE certified according to MDR.
How to adjust the Combigyn
The Combigyn always has a minimum of two motors, one adjusting height and one adjusting the seat section / Trendelenburg position. The two backrests are manually adjusted by gas spring as standard. The forward backrest is also available with electric adjustment.
Chassis
The all-welded chassis is available in chromium-plated or powder-coated steel. The design with its four lifting points makes the Combigyn very sturdy and stable.
Castors
The quality 125 mm castors is locked and released by pressing one pedal, so called central locking. Thereby the Combigyn is easy to move in the room for cleaning or even for transporting a patient urgently if needed.
Leg holders
The leg holders are fully adjustable in height, angle, around its axis and along the accessory rails. They are available in two different designs, model Standard with its removable pad in the same colour as the chair and model Integral in a black integral foam. Both the leg holders and the optional patient handles are easily and fully removable from the accessory rails, which is a great help when moving a patient onto the chair from a bed or a wheel chair.
Pads and colour
The pads are filled with a 4 cm foam plastic, covered in artificial leather available in many different colours to match the room decor. The pads are protected against bumps by a chromium-plated steel frame.
Accessories
There are several accessories available to the Combigyn table, such as an examination light that can be mounted onto the Combigyn table itself.
A paper roll holder is included.
Motors and controls
220-240 V/24 V. Foot control (24 V) is standard, hand control (24 V) is optional. The chair is available with battery backup as option.
There are several accessories available to the Combigyn table, such as an examination light that can be mounted onto the Combigyn table itself.
A paper roll holder is included.
Motors and controls
220-240 V/24 V. Foot control (24 V) is standard, hand control (24 V) is optional. The chair is available with battery backup as option.
May we send you an offer?
This is how it works:
1) "Shop" like in any webshop.
2) Fill in some very basic contact info. The zip code is important to let us calculate freight.
3) Press "send".
The offer, sent by e-mail if nothing else is choosen, is free of charge and any obligations. It will be sent to you as soon as we've received a freight offer from our freight contacts.
Facts
Dimensions
Length: 200 cm
Length backrest 1: 75 cm
Length backrest 2 (the gyn backrest): 85 cm
With: 70 cm
Width seat: 55 cm (the actual pad 53 cm)
Height: 57-95 cm. Max height seat while tilted: 110 cm
Backrest angle: 70°
Gyn backrest angle: 53°
Trendelenburg angle: -7°
Weight: 88 kg
Max load: 165 kg
Length: 200 cm
Length backrest 1: 75 cm
Length backrest 2 (the gyn backrest): 85 cm
With: 70 cm
Width seat: 55 cm (the actual pad 53 cm)
Height: 57-95 cm. Max height seat while tilted: 110 cm
Backrest angle: 70°
Gyn backrest angle: 53°
Trendelenburg angle: -7°
Weight: 88 kg
Max load: 165 kg
